Codes:
USAE00000060 – 60M
USAE00000090 – 90M
USAE00000120 – 120M
USAE00000140 – 140M

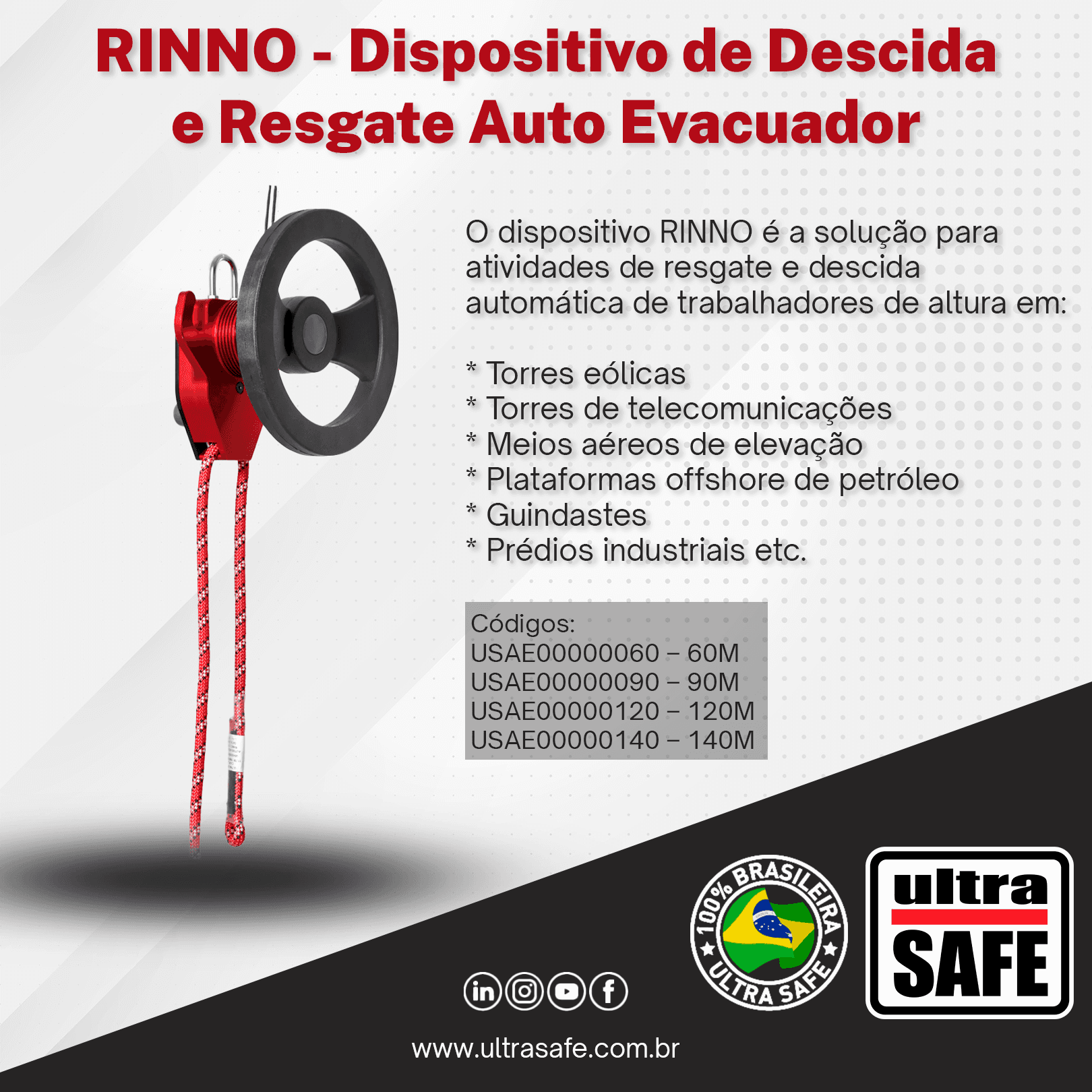

The RINNO device is the solution for rescue and automatic descent activities for workers at height in:
• Wind turbines
• Telecommunication towers
• Aerial lift means
• Offshore oil platforms
• Cranes
• Industrial buildings, etc.

Features:

• Integrated hoisting wheel (version 2.0);
• Uses 9.5mm Kernmantle rope of varying lengths, according to user needs;
• Can be used in rescue or evacuation operations from heights up to:
▪ 500 meters (one user) up to 140kg
▪ 175 meters (two users) up to 280kg
• Made with highly abrasion-resistant materials;
• Rope ends with eyelets and safety seams.

Body and ears: Aluminum
Rope clamp: Nylon
Connectors: Two (2) in steel (one triple-lock and one double-lock)
Weight: 2.6kg

Technical details
• Super compact and lightweight equipment;
• Machined aluminum casing, ultra-light and durable material;
• Bidirectional hub (ascent or descent mode) that allows for multiple rescues via the integrated hoisting wheel;
• Autonomous descent: features side ears to create friction and/or brake the rope during descent;
• Integrated rope clamp in the device;
• Front wheel in two options:
A. Front wheel to be manually operated in “ascent” mode on the rope; B. Front wheel with drill adapter for the device to be operated via drill, in “ascent” or “descent” mode.
• Lifeline made with 9.5mm Kernmantle rope (ABNT 15.986). The device is delivered with the rope already assembled in the equipment.
The rope length will depend on the local height and the type of operation to be performed (client option).

Main features
• Emergency rescue and evacuation from various elevated work areas;
• Fully autonomous controlled descent;
• Bidirectional device design allows for multiple rescues;
• Integrated hoisting wheel for rescue (optional);
• Safe operation
