Code: USR009027 – BRAVO MANUAL WINCH – GALVANIZED STEEL – 10 MTS
Code: USR009028 – BRAVO MANUAL WINCH – GALVANIZED STEEL – 15 MTS
Code: USR009029 – BRAVO MANUAL WINCH – GALVANIZED STEEL – 20 MTS
Code: USR009030 – BRAVO MANUAL WINCH – GALVANIZED STEEL – 30 MTS

Code: USR009026 – BRAVO MANUAL WINCH – STAINLESS STEEL – 10 MTS

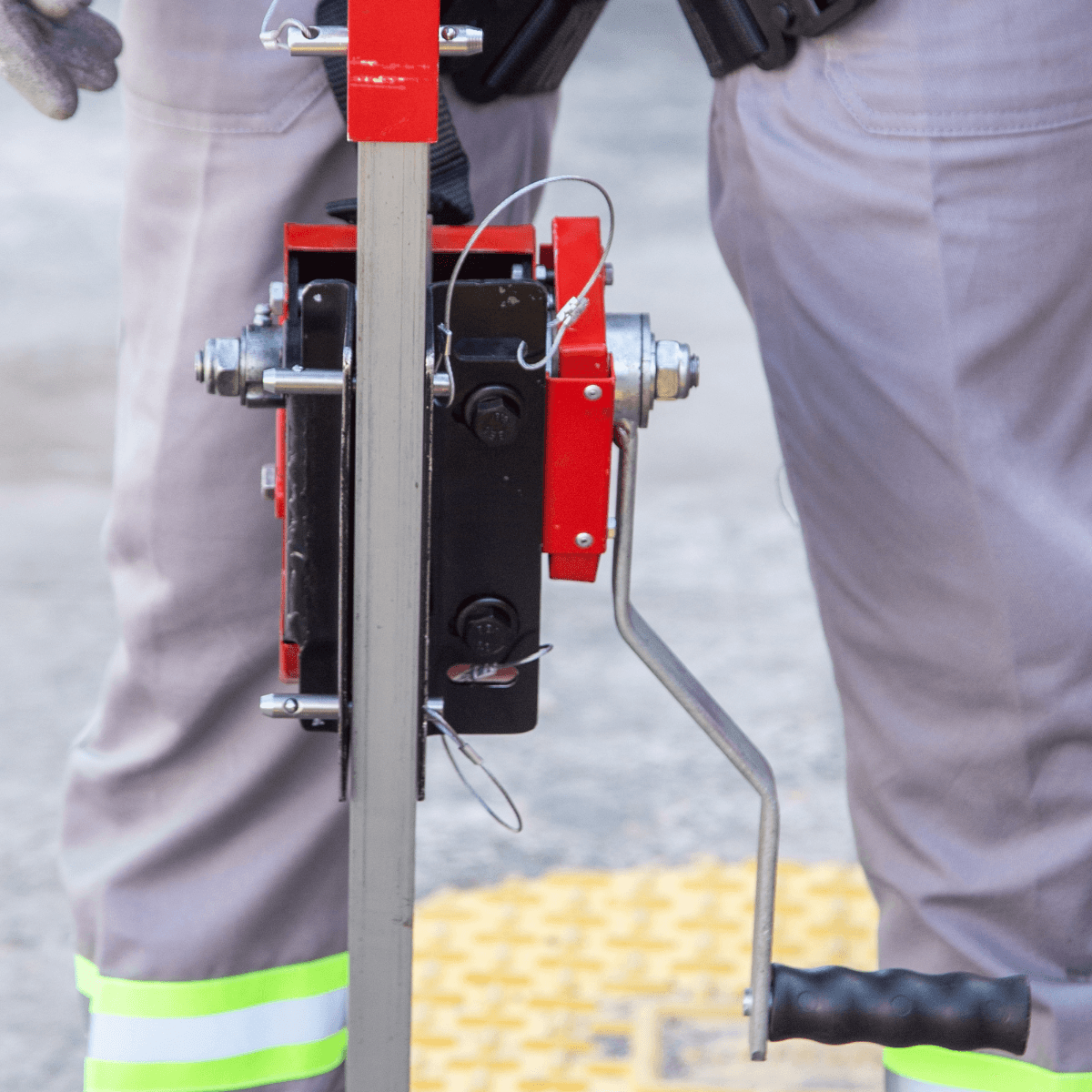

Equipped with a self-locking system, it has damping
to dissipate energy in case of user fall.

During rescue operations, the winch releases and retracts the cable
providing instant braking when the handle is
stopped.

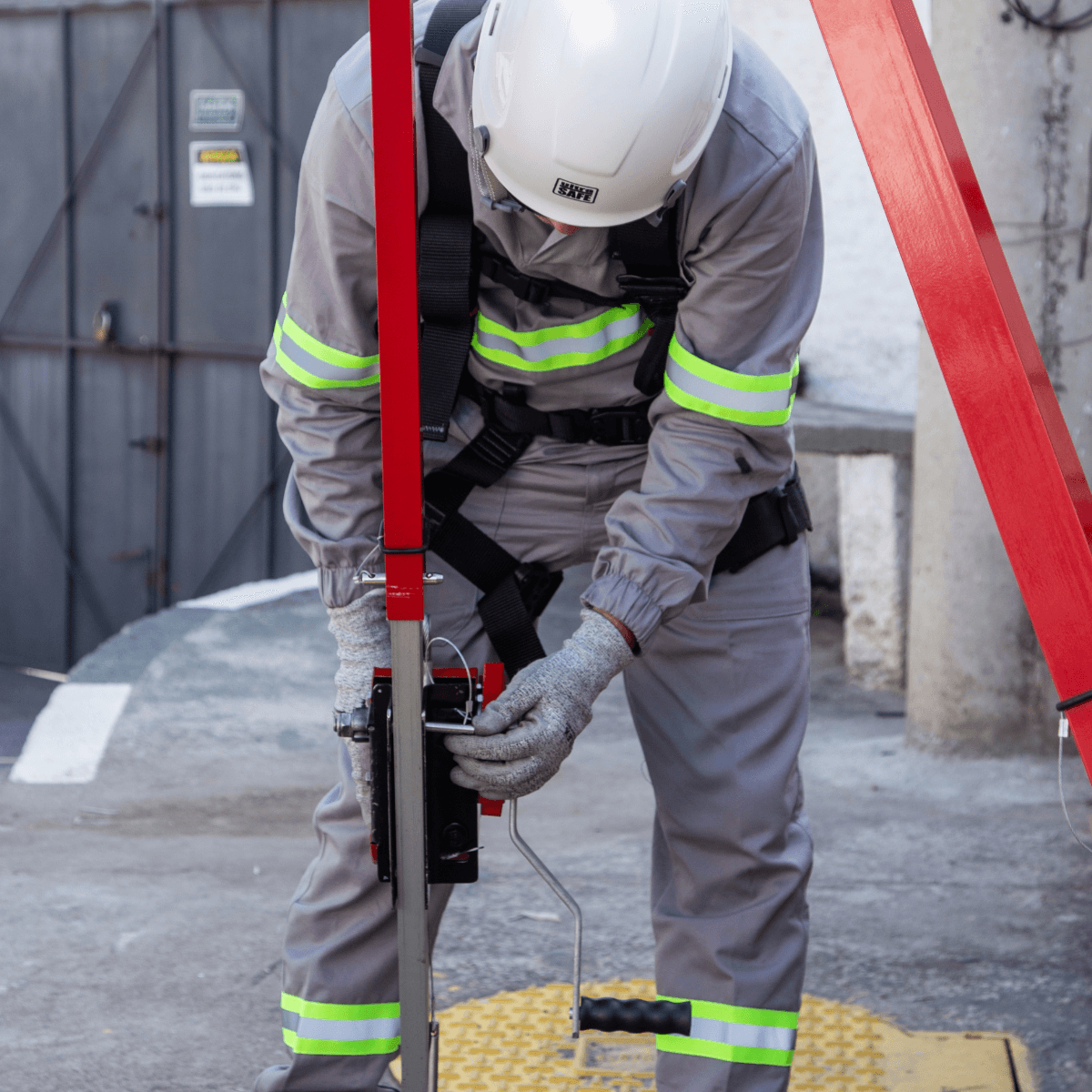

Descent: The descent operation should be managed by an
operator using the handle placed on the winch, turning it
counterclockwise.

A second worker should stay next to the winch as
responsible for the potential rescue of the victim.

Ascent: To perform the ascent, the handle should be turned
clockwise.

It features a carabiner with an integrated swivel device for
steel cable.

FEATURES
Color: Red and black
Cable Length: 10, 15, 20, or 30 Meters
Working Load: 280 kg
Breaking Load: 13kn
Reduction: 7:1
Brake: Dual direction
Weight: 17 kg
