Code:USST003000
Features
Height: 470 mm
Width: 78 mm
Maximum Opening (mouth): 95 mm
Weight: 1650 g.
Raw Material
MV-FIX® Device: Polyamide
Mouthpiece: Polyamide
Rope: 8mm x 7m Polyester –
Kernmantle type construction (sheath and core)
Necessary Care
• This product should be stored in a dry place;
• Do not leave in contact with chemical products;
• A visual inspection should be performed before use, paying attention to any type of deformation and/or cracks in its structure and components.
Recommendations

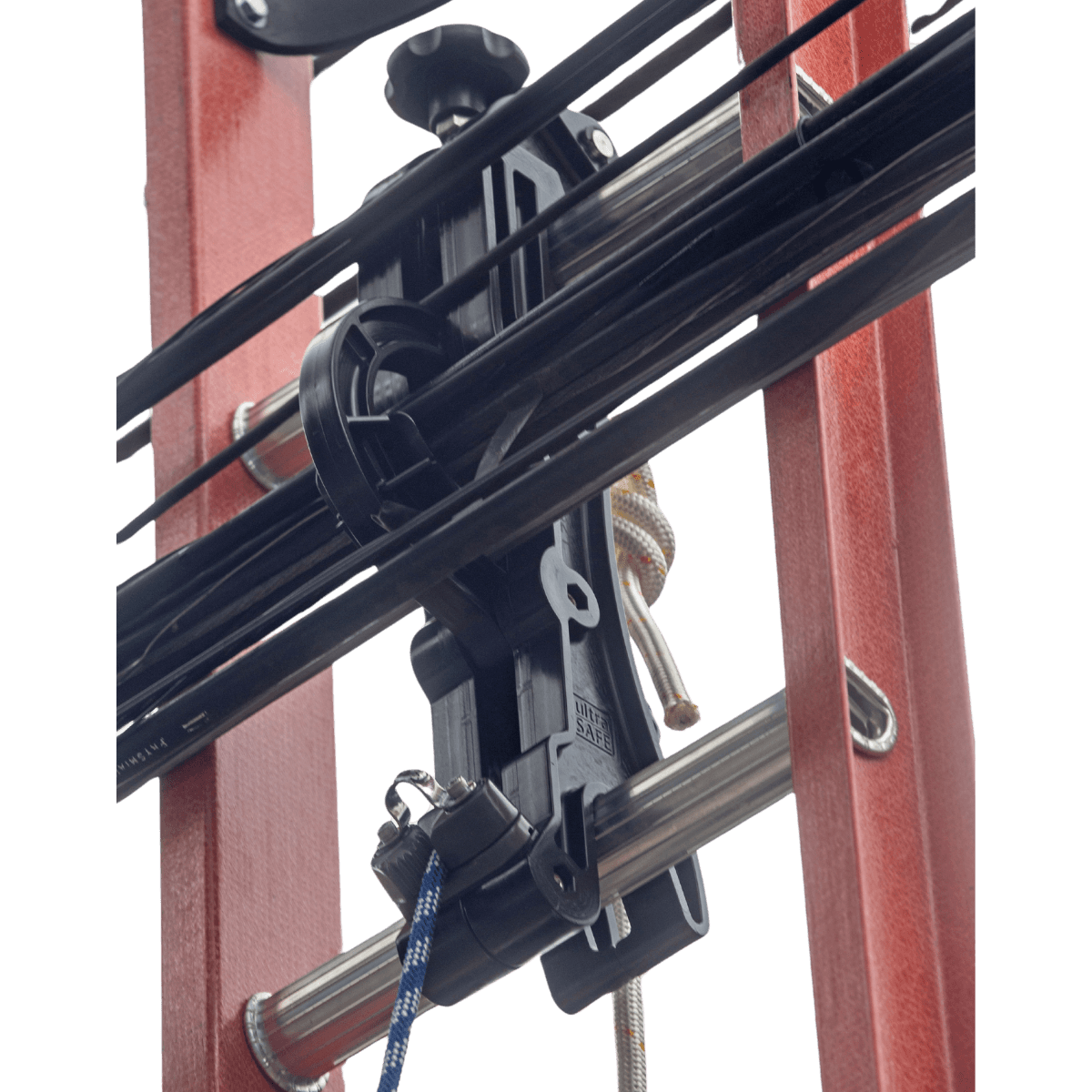

• With the equipment already affixed on the top two steps of the ladder's movable side, position it at the desired height;
• Lean the cable bundle with the set cables into the MV-FIX® hook;
• Pull the rope down to close the hook;
• The rope will automatically lock in the mouthpiece;
• To open the hook and release the ladder, lightly throw the rope upwards to release it from the locking device.
Technical Description
The MV-FIX is used to create a connection on the cable, thus establishing an anchorage point for the lifeline, making the ladder use only for access to the workstation.
In possible accidents, the ladder does not have a factor that implies a fall of the user.
The MV-FIX system is made of polyamide, marine-grade aluminum, and stainless steel, which ensure excellent resistance to mechanical, corrosion, chemical, and electrical factors.
It has a certified anchorage point for use with a lifeline system.

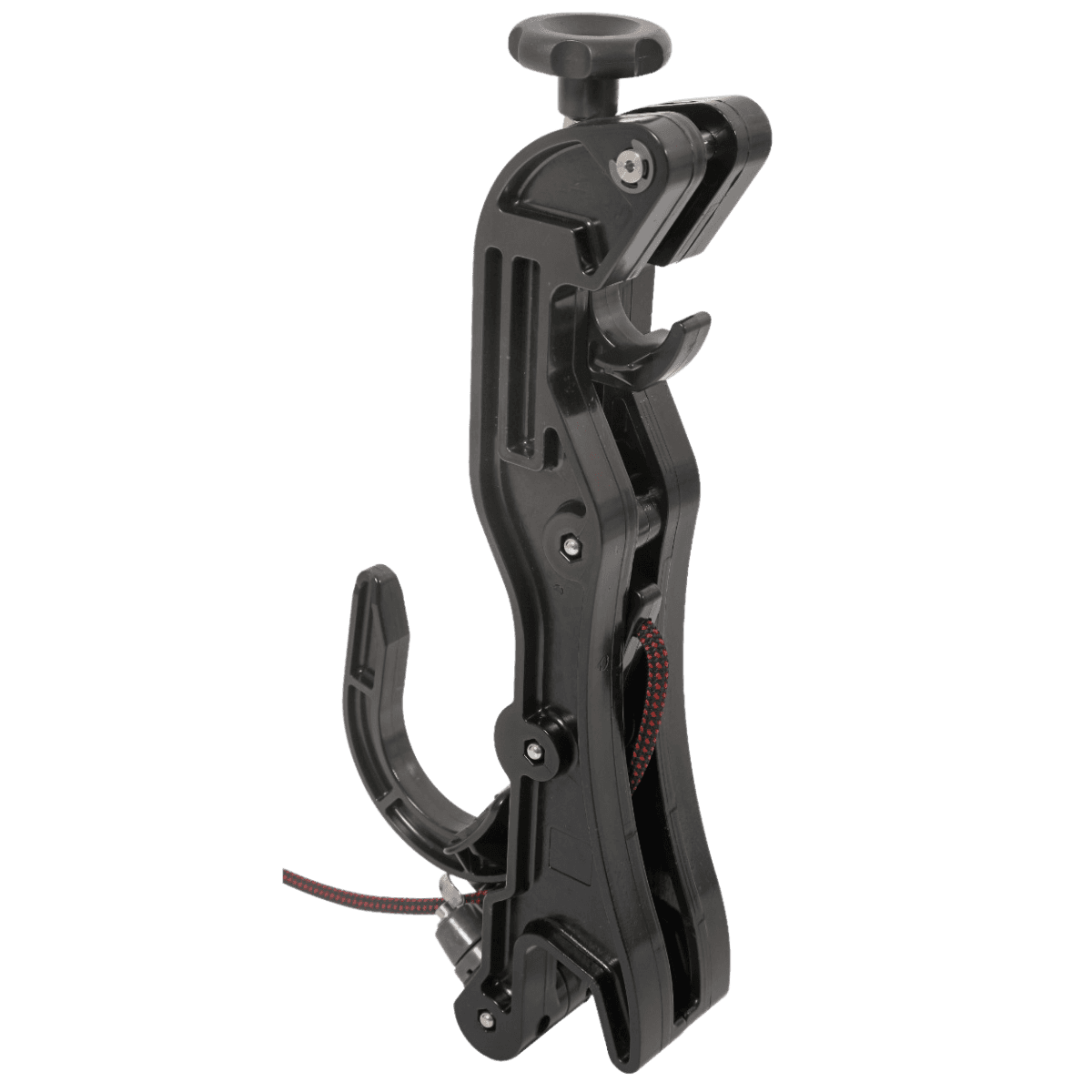

The MV-FIX® device consists of four parts:
• Black body with compatible fittings for both “round” or “D” shaped steps. The upper fitting has a thread for locking on the upper step. The lower fitting is used only as a backrest on the second step of the ladder;
• Hook connection with a 95 mm opening, for connection to the cable. It has a groove on its back (full closure position) for accommodating the steel cable;
• 8 mm rope with 7 meters in length, for movement of the hook connection (closing and opening);
• Rope locking device (biter) installed at the bottom of the MV-FIX®.
