Code: USA420000000
Features
Breaking load of the strap: 22 kN
Activation load in case of a fall: 3 kN
Breaking load of the triangular ring: 8 kN
Length: ≈ 65 cm
Weight: ≈ 164
Straps
High tenacity polyester
The high tenacity filaments provide greater resistance than conventional fabrics.
Surface flame resistant textile material (class F2/1.5mm) and edge flame (class K2/1.5mm) according to standards:
• DIN 53438-3/1984 “Testing of combustible materials response to ignition by a small flame – Part 3 (Surface ignition)”
• DIN 53438-2/1984 “Testing of combustible materials response to ignition by a small flame – Part 2 (Edge ignition)”
Buckles
Fast Connect – Quick connection and adjustment system, made of stamped steel, without seams or welds with special surface treatment that provides extra resistance to oxidation in saline environments and humidity. They can receive dielectric treatment.
Stitches
In contrasting colors to the strap for better visibility and inspection, they are made in Zig-Zag – continuous stitching that provides great localized resistance – and in V, with continuous straight stitching for greater safety.
Technical Description

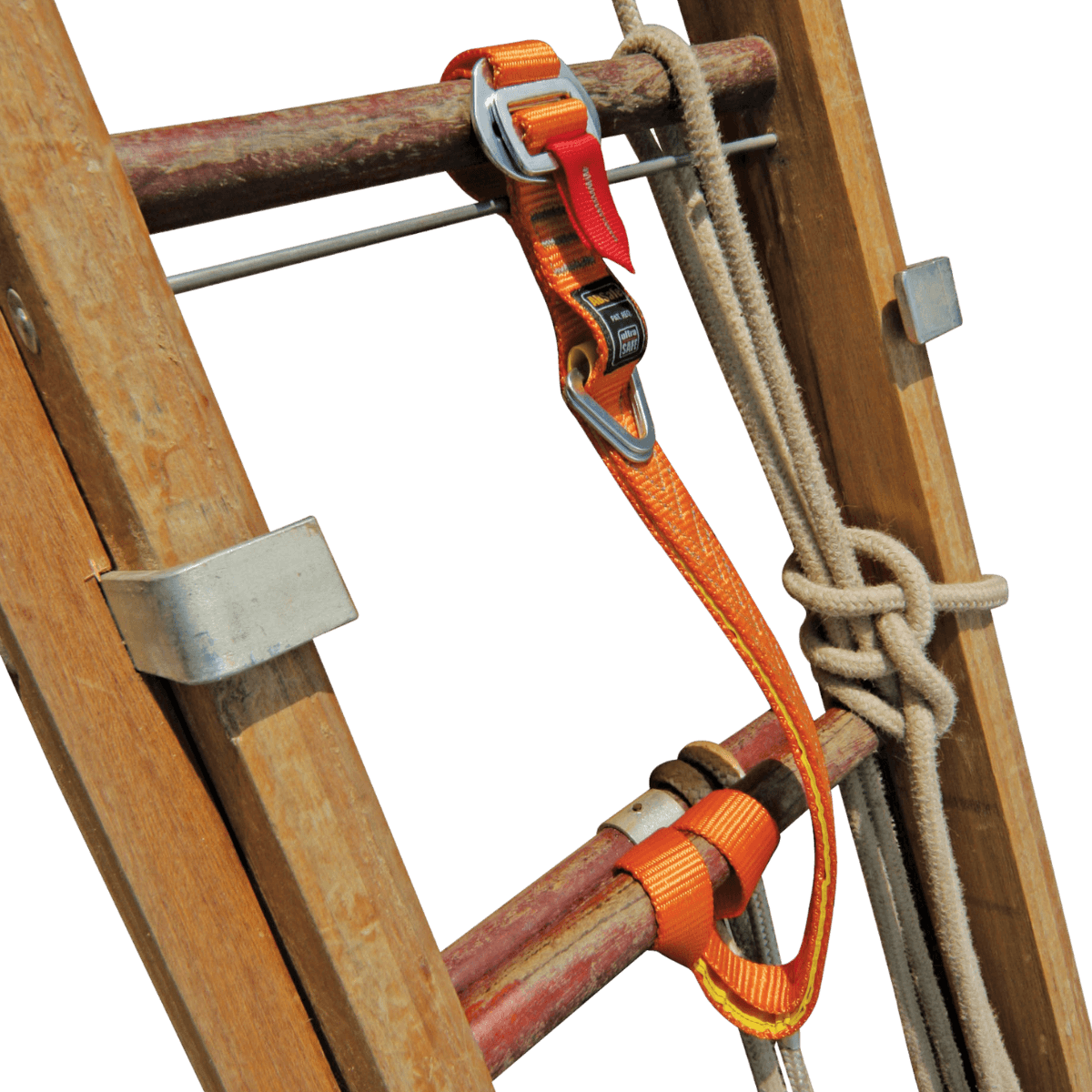

Anchor strap for ladders with sewn textile device for impact absorption and fall retention. Its fixation occurs on the upper steps through a twisted loop and closure with quick connection and adjustment buckles, allowing the force to be distributed over two steps, in the event of the device's activation and reaching the end of the stroke.
They are made of high tenacity polyester straps with a breaking load of 22 KN.
There are two triangular rings with a breaking load each of 5 kN.
Recommended Use
Anchor point for lifeline on ladders.
Recommendations
• Read the manual carefully;
• Training is essential;
• Properly adjust the product and always monitor during work execution;
• Ensure that the buckle (Fast Connect) is properly positioned in place, thus locking the system;
• After being “engaged” in case of a fall, even if it does not open completely, the ABSAFE should be discarded;
• Do not expose yourself to fall risks greater than Factor 2, as the device is not designed to withstand such a fall;
• Be careful where the ABSAFE will be anchored, as the ladder step may not withstand high loads; check the ladder's manual for the breaking load that the step can support at the center and on the side.
Concept
The ABSafe ladder anchorage strap was designed considering worker safety and functionality concepts.
Quality
The development of this product was monitored and tested by professionals. It is manufactured with the highest quality raw materials and its production is carried out on automatic machines that eliminate any possibility of human error.
Functionality
The Ultra Safe ABSafe is a product with an invention patent. This ingenious anchorage strap allows the worker to use a ladder to access the workplace with total safety: the ABSafe strap functions as an impact absorber and fall retainer. Anchoring is done on the top two steps of the ladder for better distribution of impact force.
